Butterfly Wafer Lever Valve Fully Lugged

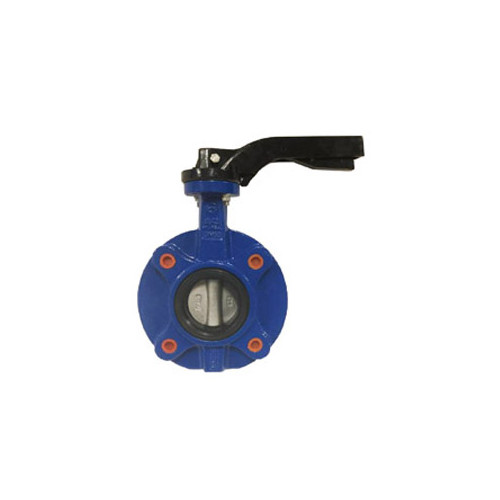

Above: Lever Operated (up to DN200)

Above: Gearbox Operated (DN250 and DN300)

Product Info

Designed for installation between flanges drilled in accordance with EN1092-1 PN16 standard and with Hand Lever Or Gearbox Operation. The valve’s liner and disc are replaceable and available in various materials for media compatibility. The actuator flange complies to ISO 5211. Suitable for use with potable water, warm water, hot water and air. Typical applications include HVAC, petrochemical processing, oil and gas process, shipbuilding, etc.

Specification

• Operating pressure: 16 Bar
• Operating temperature: 110°C
• Applicable fluids: Water, warm water, air, weak acid
• Flanges standard: EN1092-1 PN16
• Sizes: 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12" (larger sizes available upon request)
