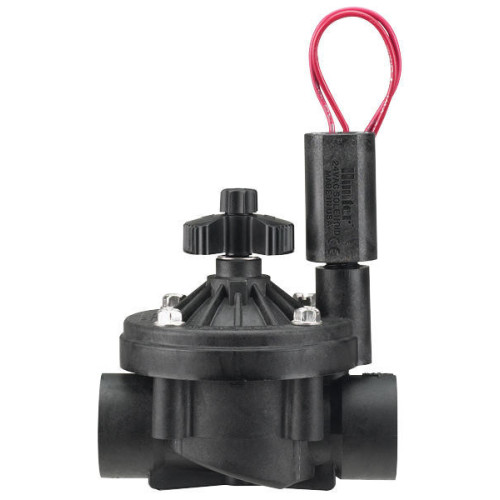

Hunter ICV Solenoid Valves 24v AC

In order to create a plastic valve that can consistently operate at 15 bar, Hunter relies on only materials that are both time and contractor proven. Created to handle the wide range of conditions different sites will bring, the ICV valve includes both a fabric reinforced EPDM diaphragm and seat, and flow control as standard features. It can consistently withstand pressures of up to 15 bar while handling the continual hammer that such forces will produce. Plus, its exceptionally easy to service, with bonnet bolts that can be loosened and tightened using a variety of common contractor tools. A Filter Sentry option is also available for applications that involve dirty water. The Filter Sentry system keeps the the valve filter screen free of debris commonly found in non-potable water sources. Application: Commercial/municipal Sizes: 1" (25 mm); 1" (40 mm); 2" (50 mm) External and internal manual bleed allows quick and easy at the valve activation Glass-filled nylon construction resulting in the highest pressure rating Double-beaded diaphragm seal design for superior leak-free performance Fabric-reinforced EPDM diaphragm and EPDM seat ensure superior performance in all conditions Optional: DC latching solenoids enable Hunters battery-powered controllers Captive bonnet bolts provide hassle-free valve maintenance Low flow capability allows use Hunters micro-irrigation products Encapsulated 24 VAC solenoid with captive plunger for hassle-free service Temperature rating: 66 C Warranty period: 5 years
