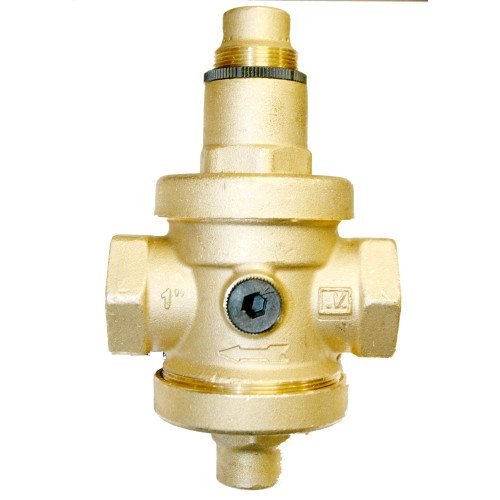

Brass Pressure Reducing Valve – 25 Bar Inlet 4 & 6 Bar

Description

Brass Pressure Reducing Valve – 25 Bar Inlet 4 & 6 Bar
This brass pressure reducing valve (PRV) is WRAS approved and is suitable for oil and water applications up to 80°C. The PRV comes with a ¼” BSP female threaded outlet port, which can be screwed to a ½” BSP male inlet port, with a maximum working pressure of 25 Bar. This PRV can be adjusted between a minimum outlet pressure of 0.5 Bar and maximum pressure of 6.0 bar by using the adjustment collar on the side of the body.

Summary

• Pressure Reducing Valve
• Brass body
• Union, Screwed and Compression End connections
• Sizes: 1/2" to 2" and 22mm
• Maximum outlet pressure of 0.5 to 6 Bar

Specification
Body
Brass CW617 N UNI EN 12165

Internal
Brass CW617 N UNI EN 12164

Seat
Stainless Steel 303

Stem
Brass CW614 N UNI EN 12164

O-rings
NBR/FP75N

Flat Gaskets
Fasit

Plastic Parts
Ultramid A3K
