Specifications
Colour: Black
Type: Perforated
Nominal Size: 80mm
Minimum Internal Diameter: 65mm
Nominal External Diameter: 80mm
Coil Length: 50m
Coil Size (Diameter x Height): 1200mm x 450mm
Weight: 0.27kg/m (13.5kg total)
Slotted Dwells: 100 per meter with 3 slots per dwell
Perforation Width: 1.4mm
Perforation Length: 11mm
Permeable Area: 4620mm2/m
Minimum Ring Stiffness: >2.00kN/m2
Typical Ring Stiffness: 6.6kN/m2

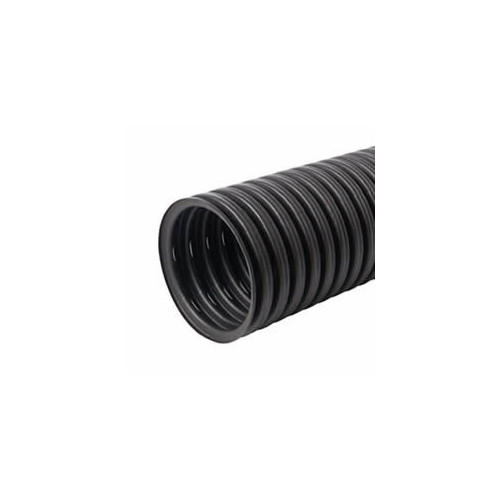

This 50m coil of black 80mm perforated land drain is a single wall, corrugated pipe manufactured from high-density polyethylene intended to allow fast and easy installation and excellent water flow.
Perforated land drainage is designed to collect surface water through small holes cut in the dwells of the coil. In agriculture, this assists drainage in fields and improves soil quality. In construction, it alleviates flooding and relieves static load on underground structures and retaining walls.
Perforated land drain is also useful in Sports Fields, Lawn & Garden drainage (in smaller diameters), and can also feature in French Drains to improve drainage.
Customer Advice: When installing land drain, the trench you dig needs to be wider than the diameter of the pipe and MUST be at least 450mm deep. This is important if you are planning on aerating your lawn - the pipe must be deep enough so it's not damaged by spiking or other maintenance.
Key Features:
- Manufactured from HDPE
- Perforated - 3 slots per dwell
- Corrugated - for extra strength
- Flexible coil structure - 90 degree bend radius over 1m
- Cost effective solution for most projects
- Non-kite marked
- Made in accordance with BS4962:1989
