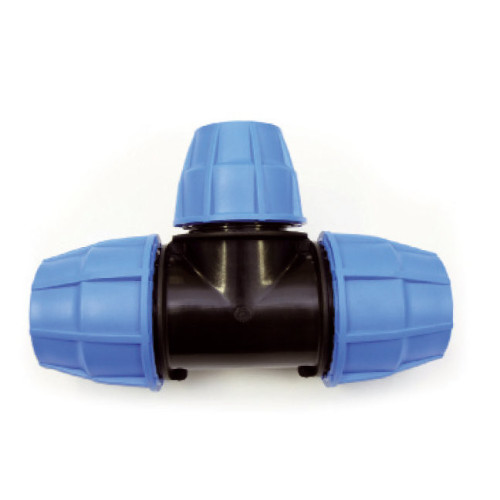

Compression Reducing Tee 90Deg [16 Bar]

S16 Compression Fittings for pressure piping applications are characterised by the Innovative Balance Sealing System Poseidon (PAT pending). This leads to the maximum safety while keeping the basic features of easy and fast assembly without preperation of the pipe.

Product range: 16-110mm

Main Applications

Water supply, house connection and water treatment plants, sprots irrigation, gardening, agricultureal and horticultural irrigation.

Technical Specifications

Materials

Body,nut,thrust ring: virgin polypropylene [PP-B], highh mechanical resistance and thermal stability in course of time. For coloured nuts, top UV resistant master-batch are used [grade 8- ASTM D2565]

Grip ring: copolymer polyacetal resin [POM], white colour

Conical gasket: rubber NBR or EPDM, hardness 70sh, black colour

Reinforcement ring: only for female threads >= 1 1/2", stainless steel AISI 430

WRAS Approved
